Plaub-Axis Siab Tsis Siv Neeg Txhuam Tshuab





NPE Plaub-Axes Tag Nrho Tsis Siv Neeg Txhuam Tshuab nrog npog
HOM	GH70-04SCZ 321
Fmob taub hau	Staple-wire los yog flat-wire
Fcov cuab yeej mob	1
Drills	2
Clamping chaw nres tsheb	3
Axes	4
Speed (tufts / feeb)	500
HNUB QUB KAJ NTUG	70 hli
MAX HEIGHT OF HAIR TIP	120 hli
DISTANCE NTAWM FIXTURES	180 hli
X-axis STROKE	550 hli
Y-axis STROKE	550 hli
Z-axis STROKE	200 hli
A-axis STROKE	180 degree



1.Lub thav duab ntawm lub tshuab ntxhua khaub ncaws siv lub tshuab ntxhua khaub ncaws, ua kom nws lub zog thiab ruaj khov dua. Sab hauv ib nrab-thooj raws li txhim kho qhov kev poob siab absorbing peev xwm ntawm tag nrho cov thav duab, kom ntseeg tau tias tus qauv qub tsis cuam tshuam los ntawm kev vibrations.
2.Lub tshuab ntxhua khaub ncaws tufting muaj ob chav drilling thiab ib lub tshuab filling uas ua haujlwm tsis tu ncua tsis tas yuav tsum hloov qhov chaw, ua kom cov zis ntau ntxiv.
3.Qhov drilling seem siv lub pob qhia rail qauv, uas muaj kaum-fold lub neej ntev tshaj li tus qauv tooj liab lub tes tsho qauv.

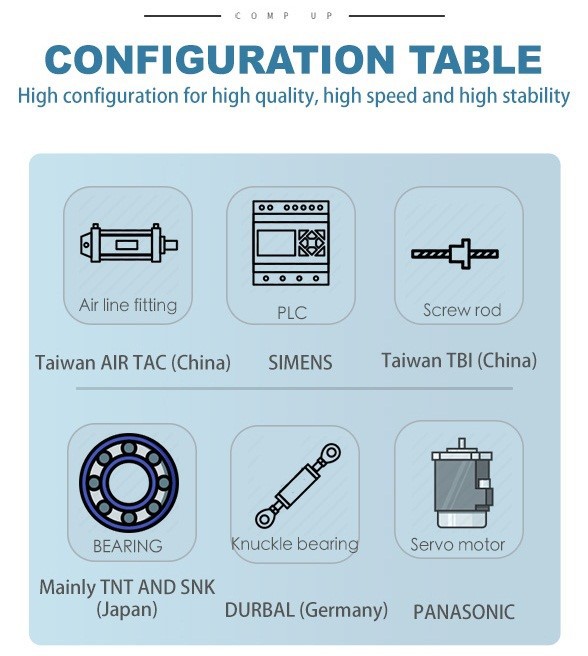

4.Complex khoom yog yooj yim dua txij li thaum lub operating system tuaj yeem kho los ntawm lub computer. Ua ob hom lus thiab paub lus Suav thiab Askiv. Lub operating system programmer yog tsim los ntawm nws tus kheej thiab muab tso ua ke, siv Siemens tswj ntse PLC, txawm tias ua cov khoom lag luam yooj yim rau kev khiav lag luam, kawm, thiab nkag siab.
5.Cov kev ua haujlwm hom yog hom hluav taws xob cam, uas muab kev txav chaw ruaj khov thiab tsis tshua muaj suab nrov, ncua kev pab cuam lub neej ntawm cov lus qhia coj cov ntsia hlau thiab cov kabmob tseem ceeb.
6.Lub worktable yog ntxiv dag zog, ua kom nws ruaj khov thiab tso cai rau kev tsim cov khoom ntev dua.
7.Axis A tuaj yeem tig tau 180 degrees, thiab cov plaub hau txhuam kev tsim tshuab tuaj yeem hloov kho los ntawm 4 mus rau 5 axes.
8.Multiple sets of worktables yuav muab ntxiv rau lub tshuab kom tau raws li ntau yam kev xav tau.
9.Thaum ua "offset" lub tog raj kheej txhuam los yog cov kaum sab xis ntawm cov txhuam hniav, muaj qhov thib tsib axis ntawm cov lus tsa suab yog qhov kev xaiv. Tom qab ntawd koj tuaj yeem xaiv los ntawm ib qho ntawm peb lwm tus qauv (GH70-05)



Cov khoom

Haum rau kev tsim khoom hauv tsev, kev siv tshuab thiab cov khoom lag luam xws li:

→ txhuam lub tog raj kheej, txhuam hniav hauv tsev, txhuam plaub hau, txhuam txhuam, txhuam txhuam, txhuam txhuam, txhuam txhuam txhuam, txhuam txhuam txhuam, txhuam txhuam hauv pem teb, txhuam txhuam thiab lwm yam.

→ kov hom: ntoo thiab yas tuav

→ hom filament: tuaj yeem ua cov yas filament|hlau filament|ntuj fiber ntau thiab ntuj plaub hau|tsiaj plaub hau



Nws lub tshuab ruaj khov tsim kom ntseeg tau tias kev ua tiav ntawm cov ntaub ntawv ntev, tawv tawv ntawm qhov ceev tufting ceev. Thiab nws tseem tuaj yeem ua cov ntaub ntawv mos tsiaj plaub hau kom raug.

Tuntoo tau cog lus los muab koj cov cuab yeej siv hluav taws xob uas pheej yig tshaj plaws thiab cov kev daws teeb meem, nrog rau kev muag khoom ua ntej thiab kev pab cuam tom qab muag. Peb zoo siab tos txais cov neeg siv khoom tshiab thiab tam sim no los tham txog kev koom tes:

Qhov peb muab:

1) Kev tsim qauv zoo dua

2) Advanced technology

3) Kev tswj xyuas nruj

4) Cov nqi sib tw heev

5) Txhim khu kev ua haujlwm

6) Kev sib txuas lus zoo

7) Kev pab cuam tom qab muag zoo & kev txhawb nqa





Kev muag khoom ua ntej: Txhawm rau muab cov lus qhia kev tshaj lij, muab cov ncauj lus kom ntxaws, muab cov lus tsim nyog, muab kev kuaj xyuas.
Nyob rau hauv-muag: Nyob rau hauv tus txheej txheem ntawm kev tsim khoom, caw tus neeg muas zaub technical neeg ua hauj lwm rau peb lub tuam txhab los saib xyuas ntawm txhua tus txheej txheem ua hauj lwm nyob rau hauv lub manufacturing txheej txheem, thiab muab cov neeg muas zaub technical neeg ua hauj lwm nrog rau cov txheej txheem soj ntsuam thiab soj ntsuam ntawm cov khoom. .

Tom qab kev muag khoom: Solemnly cog lus rau cov neeg siv kev hwm: nruj me ntsis ua raws li cov kev pab cuam tom qab muag; 24 teev nyob rau ib hnub los muab kev txhawb nqa rau cov neeg siv, xov tooj kub siab rau kev pabcuam rau koj, hauv lub sijhawm luv tshaj plaws rau qhov xwm txheej, Siv cov kev pabcuam taug qab rau cov neeg siv khoom uas yuav peb cov khoom, Kev pabcuam dawb ntawm qhov chaw debugging thiab kev pabcuam kev teeb tsa dawb rau cov khoom muag , Cov teeb meem khoom zoo, ib xyoos dawb warranty, kev saib xyuas lub neej ntev, muaj daim ntawv cog lus raws li daim ntawv cog lus cog lus.



1.Our cov cuab yeej yog lub tshuab nqus tsev ntim nrog cov ntaub ntawv ntoo los tiv thaiv nws los ntawm xeb thiab noo noo, tiv thaiv kev puas tsuaj rau lub tshuab los ntawm kev thauj mus los hauv hiav txwv ntev thiab qhov corrosive ntawm dej hiav txwv.

2.Our ntoo rooj plaub yog tom qab fumigation kho. Tsis xav tau kev tshuaj xyuas ntoo, txuag lub sijhawm xa khoom.

3. Tag nrho cov khoom seem ntawm lub tshuab tau them los ntawm qee cov ntaub ntawv mos uas yog siv cov ntaub plaub pearl thiab npuas qhwv.

4. Sab nrauv ntawm peb cov crates yuav nruab nrog cov ntawv ntim khoom thiab lub tuam txhab lub logo kom tsis txhob poob ntawm cov khoom hauv cov chaw nres nkoj tsis meej pem, sab hauv yuav muaj daim ntawv xa tuaj thiab tag nrho cov khoom siv yuav tau yees duab thiab khaws cia rau kev txheeb xyuas tom qab.



1. Q: Koj puas yog lub Hoobkas lossis cov tub luam?

A: Peb yog lub Hoobkas thiab muaj kev lag luam thoob ntiaj teb.

2. Q: Koj puas tuaj yeem qhia peb siv lub tshuab?

A: Yog lawm, tau kawg.

3. Q: Peb tuaj yeem paub li cas yog tias peb cov qauv txhuam tuaj yeem ua los ntawm koj lub tshuab?

A: Koj tuaj yeem xa cov qauv duab, peb tus engineer yuav muab cov txheej txheem, tom qab ntawd peb tuaj yeem siv peb lub tshuab los ntaus cov qauv txhuam raws li koj tus qauv.

4. Q: Lub sijhawm ua haujlwm nruab nrab yog dab tsi?

A: Rau cov qauv, lub sijhawm ua haujlwm yog li 7 hnub. Rau kev tsim khoom loj, lub sijhawm ua haujlwm yog 20-30 hnub tom qab tau txais cov nyiaj them poob haujlwm (Rau lub tshuab txheem lub sijhawm xa khoom sai tshaj plaws yog 7 hnub).

Lub sij hawm ua cov hmoov lead ua tau zoo thaum (1) peb tau txais koj qhov tso nyiaj, thiab (2) peb tau txais koj qhov kev pom zoo zaum kawg rau koj cov khoom. Yog tias peb lub sijhawm ua haujlwm tsis ua haujlwm nrog koj lub sijhawm kawg, thov mus hla koj qhov kev xav tau nrog koj qhov muag. Nyob rau hauv txhua rooj plaub peb yuav sim ua kom haum raws li koj xav tau. Feem ntau peb muaj peev xwm ua tau li ntawd.

5. Q: Koj puas tuaj yeem muab cov ntaub ntawv cuam tshuam?

A: Yog lawm, peb tuaj yeem muab cov ntaub ntawv feem ntau suav nrog Daim Ntawv Pov Thawj Kev Ntsuam Xyuas / Kev Ua Raws Cai; Kev pov hwm; Keeb kwm, thiab lwm yam ntaub ntawv export thaum xav tau.

6. Q: Cov khoom warranty yog dab tsi?

A: Peb lav peb cov ntaub ntawv thiab kev ua haujlwm. Peb qhov kev cog lus yog kom koj txaus siab rau peb cov khoom. Hauv kev lees paub lossis tsis yog, nws yog kab lis kev cai ntawm peb lub tuam txhab los daws thiab daws txhua yam teeb meem ntawm cov neeg siv khoom kom txhua tus neeg txaus siab.

7. Q: Ua li cas txog koj qhov kev pabcuam?

A: * 24 teev kev pabcuam online.

* Muab VIDEO nrog rau nruab thiab debug cov cuab yeej.

* Muab kev sib pauv.

8. Q: Koj puas tau lees tias muaj kev nyab xeeb thiab nyab xeeb ntawm cov khoom?

A: Yog, peb ib txwm siv cov khoom ntim khoom zoo. Peb kuj tseem siv cov ntim khoom tshwj xeeb rau cov khoom txaus ntshai thiab siv tau cov neeg xa khoom txias cia rau cov khoom kub. Cov khoom ntim tshwj xeeb thiab cov khoom ntim tsis yog tus qauv yuav raug them nqi ntxiv.

9. Q: Yuav ua li cas txog tus nqi shipping?

A: Tus nqi thauj khoom nyob ntawm txoj kev koj xaiv kom tau cov khoom. Kev nthuav qhia feem ntau yog qhov nrawm tshaj plaws tab sis tseem kim tshaj plaws. Los ntawm hiav txwv freight yog qhov kev daws teeb meem zoo tshaj plaws rau cov nyiaj loj. Raws nraim cov nqi thauj khoom peb tuaj yeem muab rau koj yog tias peb paub cov ntsiab lus ntawm tus nqi, qhov hnyav thiab txoj kev. Thov hu rau peb kom paub ntxiv.
